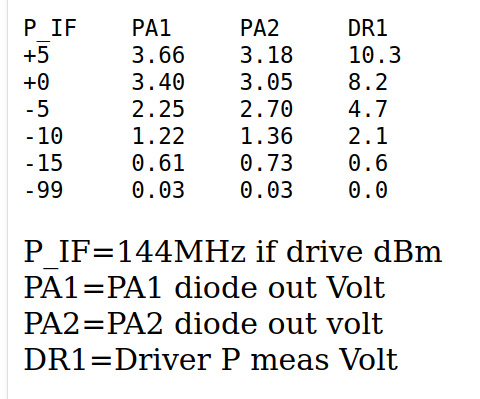

P_IF PA1 PA2 DR1 +5 3.66 3.18 10.3 +0 3.40 3.05 8.2 -5 2.25 2.70 4.7 -10 1.22 1.36 2.1 -15 0.61 0.73 0.6 -99 0.03 0.03 0.0 P_IF=144MHz if drive dBm PA1=PA1 diode out Volt PA2=PA2 diode out volt DR1=Driver P meas Volt
public : ham : EME : 3cm system 2025 : Power table |
